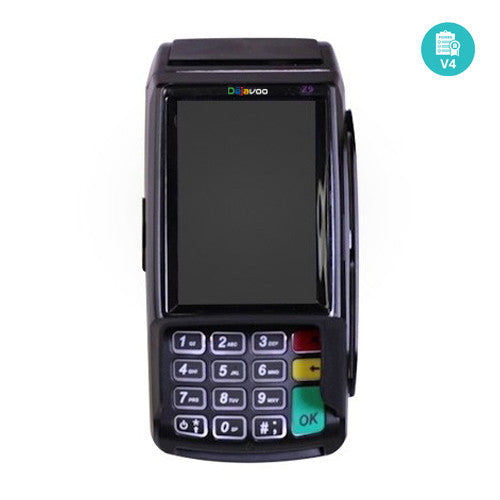

Dejavoo Z9 WiFi V3m2 Wireless Terminal – EMV NFC Touchscreen
The Dejavoo Z9 WiFi (V3m2) is a portable wireless payment terminal built for businesses that need to take payments anywhere a Wi-Fi connection is available. Equipped with a 3.5" color touchscreen, built-in thermal printer, and full EMV chip and NFC contactless support, the Z9 is a proven pay-at-the-table and mobile retail solution running on a Linux-based OS.
⚠ Important: This unit is sold as-is and is final sale. It cannot be returned, replaced, or refunded. The device may no longer be eligible for manufacturer warranty or DOA support. Please confirm processor compatibility and terminal functionality requirements before ordering.
Key Features
- Accepts magstripe swipe, EMV chip, PIN debit, and NFC contactless payments — including Apple Pay, Samsung Pay, Visa payWave, and Mastercard PayPass
- Self-discovering WiFi (2.4 GHz) — scans and connects to available networks with a single tap
- 3.5" color LCD touchscreen (320 × 480) with on-screen signature capture
- Built-in 48mm thermal printer operating at 100mm/sec for fast receipt output
- 32-bit 400MHz processor with Linux OS; 192MB memory (128MB RAM / 64MB DDR RAM) and expandable Micro SD slot
- PCI PTS 4.0 approved; EMV Level 1 and Level 2 certified
- Rechargeable, replaceable battery for untethered use at the table or on the floor
Specifications
| Manufacturer | Dejavoo Systems |
|---|---|
| Model | Z9 WiFi (V3m2) |
| Product Type | Wireless Payment Terminal |
| Condition | As-Is / Final Sale |
| Payment Types | Magstripe (MSR), EMV Chip, PIN Debit, NFC Contactless |
| Contactless Support | Apple Pay, Samsung Pay, Visa payWave, Mastercard PayPass, Amex, JCB J/Speedy |
| Connectivity | WiFi 2.4 GHz, USB |
| Display | 3.5" color LCD, 320 × 480, touchscreen with signature capture |
| Printer | Built-in 48mm thermal, 100mm/sec |
| Processor | 32-bit 400MHz |
| Operating System | Linux |
| Memory | 192MB (128MB RAM / 64MB DDR RAM); expandable Micro SD |
| Battery | Rechargeable, replaceable |
| Certifications | PCI PTS 4.0, EMV Level 1 & Level 2 |
| Dimensions | 6.3" × 3.0" × 2.06" |
| Weight | 0.74 lbs |
Compatibility
The Dejavoo Z9 WiFi V3m2 is compatible with the following payment processors and platforms:
- First Data / Fiserv (Omaha): Supported in standalone mode
- TSYS: Supported in standalone mode
- Global Payments: Supported including Global East (Canada)
- EVO Payments: Supported
- Worldpay (Vantiv): Supported; also integrates with Lightspeed Restaurant and Lightspeed Retail via Worldpay
- Dejavoo iPOSpays Gateway: Native integration with DeNovo back-office, cloud register, and SPIn semi-integration API
What's in the Box
- Dejavoo Z9 WiFi terminal (V3m2)
- Rechargeable battery / battery dongle
- Power supply / AC adapter
- Installation pamphlet
Common Upgrade Paths
The Dejavoo Z9 is a popular replacement or upgrade for businesses currently using:
- Verifone VX680 — the Z9 adds a larger touchscreen, NFC contactless, and a built-in thermal printer in a similarly portable form factor
- Ingenico iWL250 — the Z9 provides a more modern Linux platform, self-discovering WiFi setup, and on-screen signature capture
- Dejavoo Z8 (countertop) — merchants moving from fixed-counter to pay-at-table or floor-roaming workflows benefit from the Z9's battery-powered portability
This terminal requires a compatible payment processor and merchant account. The Dejavoo Z9 operates in standalone mode and must be provisioned by a supported processor or ISO. Confirm processor compatibility before ordering.
